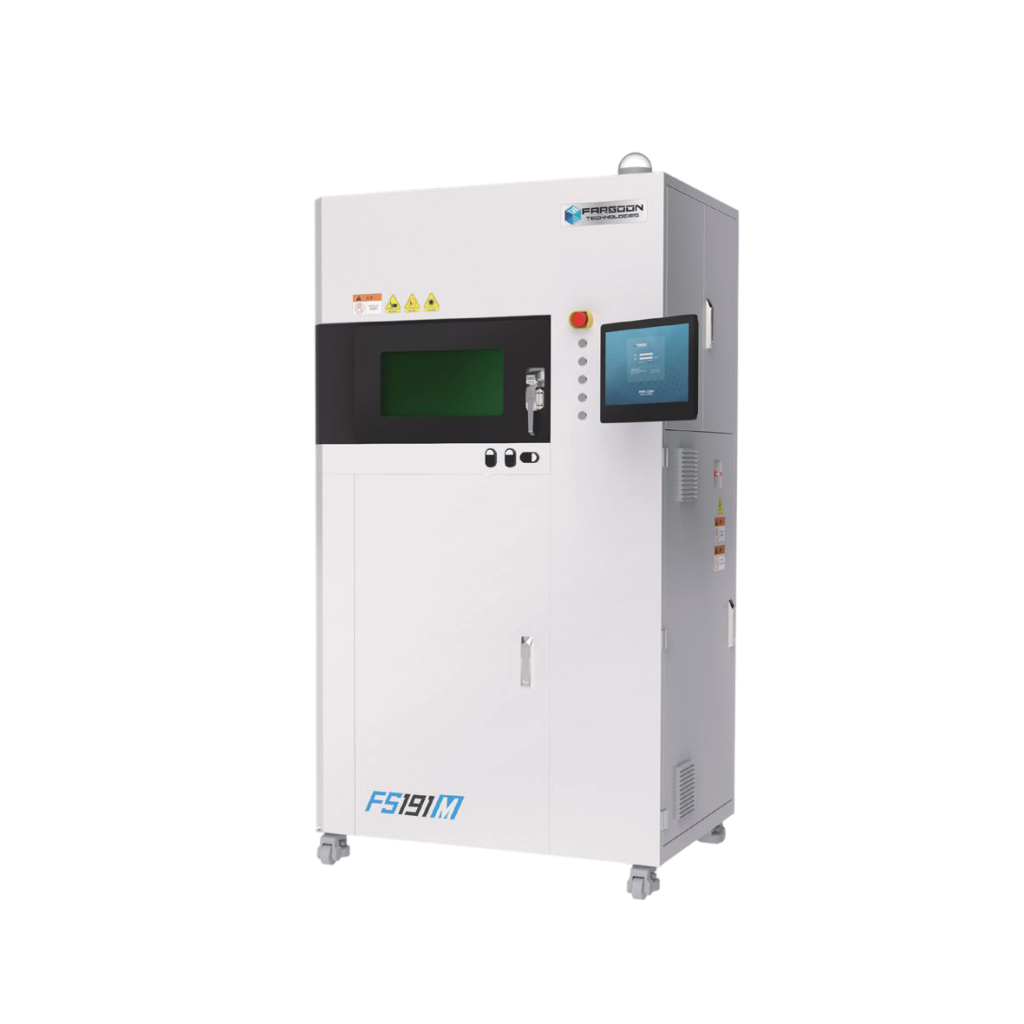

Farsoon FS191M
Compact metal 3D printer (LPBF) for research and development
A small, multi-platform metal LPBF system with a standard φ191 × 199 mm platform and a 500 W fiber laser, intended for dental and medical applications and material development.
Overview
The FS191M has overall dimensions of 1116 × 845 × 2005 mm and occupies less than 1 m². The standard platform (build cylinder) is φ191 × 199 mm, and a φ78 × 80 mm small platform is available to reduce research and testing costs. The modular design makes maintenance easier.
Options include substrate preheating up to 400 °C, melt pool monitoring and structured light detection. The system is equipped with Farsoon's low-support technology, which reduces material waste and post-processing time.
The platform is open: open process parameters allow deeper research into additive technology and materials, and parameter packages are available for multiple materials.
Key features
- Standard platform φ191 × 199 mm, optional small platform φ78 × 80 mm
- 500 W fiber laser, layer thickness 0.02–0.1 mm
- Optional substrate preheating up to 400 °C and melt pool monitoring
- Low-support technology for less material use and post-processing
- Compact: less than 1 m² footprint, modular design
- Open process parameters and parameter packages
Technical specifications
visualization, diagnostic functions
Applications
With 3D Print
- Delivery and installation in Yerevan
- On-site start-up
- Maintenance and repair in Armenia
- Advice on your task
Frequently asked questions
What is the build size of the FS191M?
The standard platform is φ191 × 199 mm. A φ78 × 80 mm small platform is also available for testing and research.
Why is the FS191M suited to research?
It offers open process parameters, a small platform to cut testing costs, and options such as preheating up to 400 °C and melt pool monitoring.
How much floor space does the FS191M need?
Its overall dimensions are 1116 × 845 × 2005 mm, with a footprint of less than 1 m².
